SAGA Arena is located within SAGA Sunrise Park, a multi-purpose facility in Saga Prefecture. The main arena boasts seating for approximately 8,400 spectators and is also used as the home arena for the B.LEAGUE SAGA BALLOONERS. It has a long history of hosting large-scale events, including a record attendance of 8,591 people in December 2023. It is used for a wide range of purposes, including sporting events, concerts, and conferences, and its vast space and cutting-edge design make it highly versatile and adaptable to a variety of activities.
Introduction video
| Developer | Saga Prefecture |
| Design | Azusa Sekkei Co.,Ltd, ISHIBASHI Architects & Associates, and Mihara Architectural Design office (JV : Joint Venture) |
| Construction | Toda Construction, Matsuo Construction, Nakano Construction, Jotaki Construction (JV : Joint Venture) |
| Structure | Steel frame construction |
| Scale | Total floor area: Approximately 29,800 m² Building height: Approximately 30.2 m Number of floors: 4 above ground |

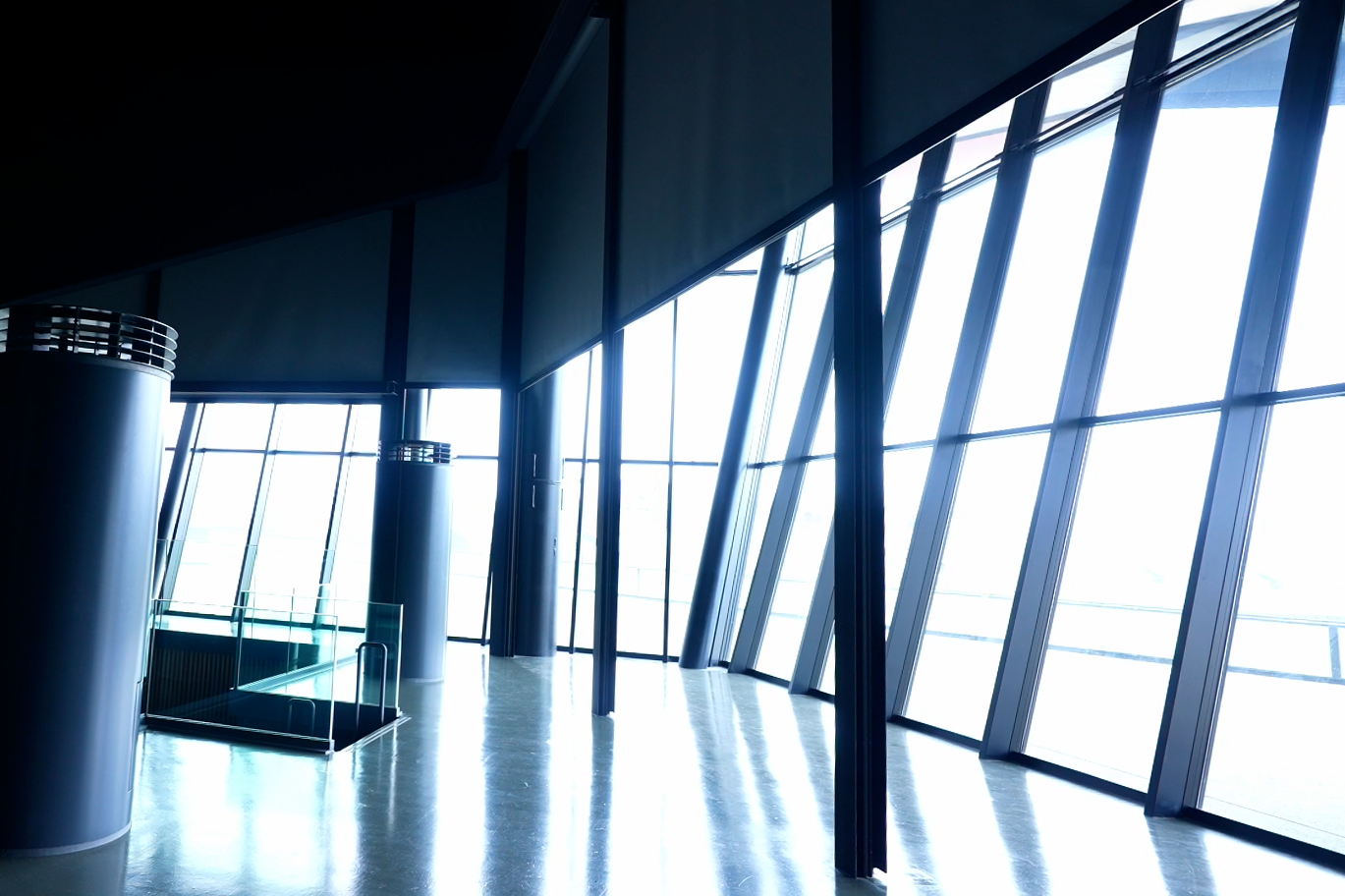

Gap-free dimming allows you to freely create a space
The “Motorized Roll Screen Zipper Type” uses a unique zipper structure that completely seals the gap between the screen and the window frame. This makes it possible to create a completely dark space without light leaking, even during the day. It creates a lighting environment that suits each scene of a competition or event, maximizing the appeal of the venue.
POINT 1

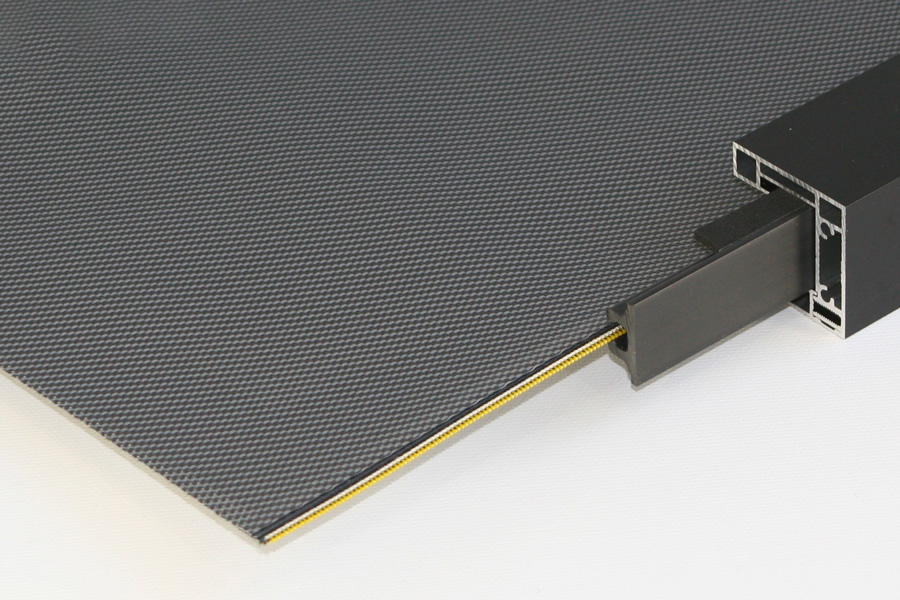

ZIP system: a structure that prevents light leakage from both ends
The “ZIP system” is used, in which fasteners attached to both ends of the screen are firmly inserted into the inner rails inside the guide rails.
This stabilizes the movement of the screen and prevents light leakage from both sides, achieving both high light blocking and a beautiful finish.
POINT 2
Special fabric with excellent light-blocking properties
The extra-large blackout fabric measures 3.6m wide and 6.7m high.

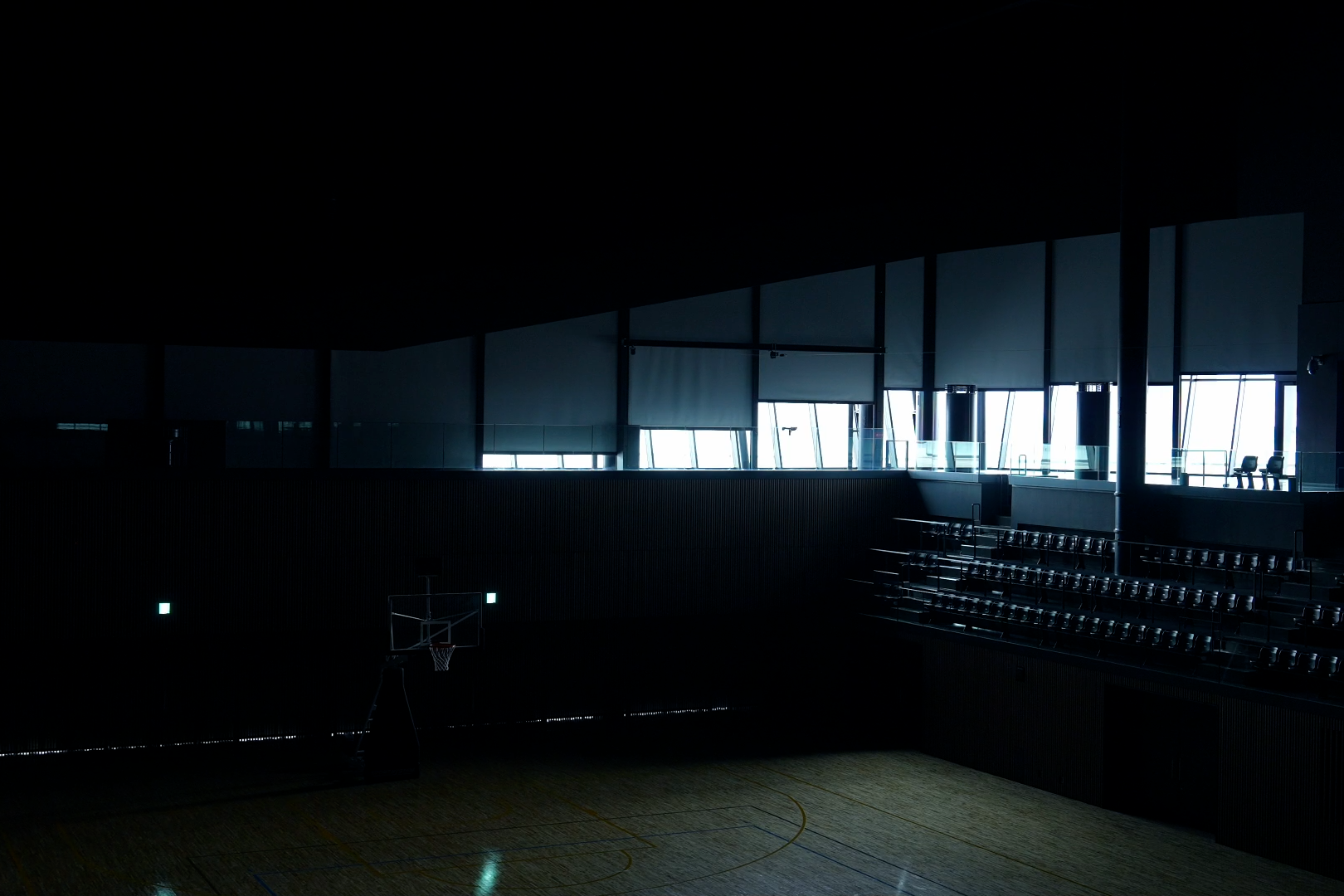

Because no light penetrates through the entire fabric, it creates a darkroom-like environment even during the day. This is ideal for situations where controlling light and darkness is required, such as competitions and video productions.
POINT 3

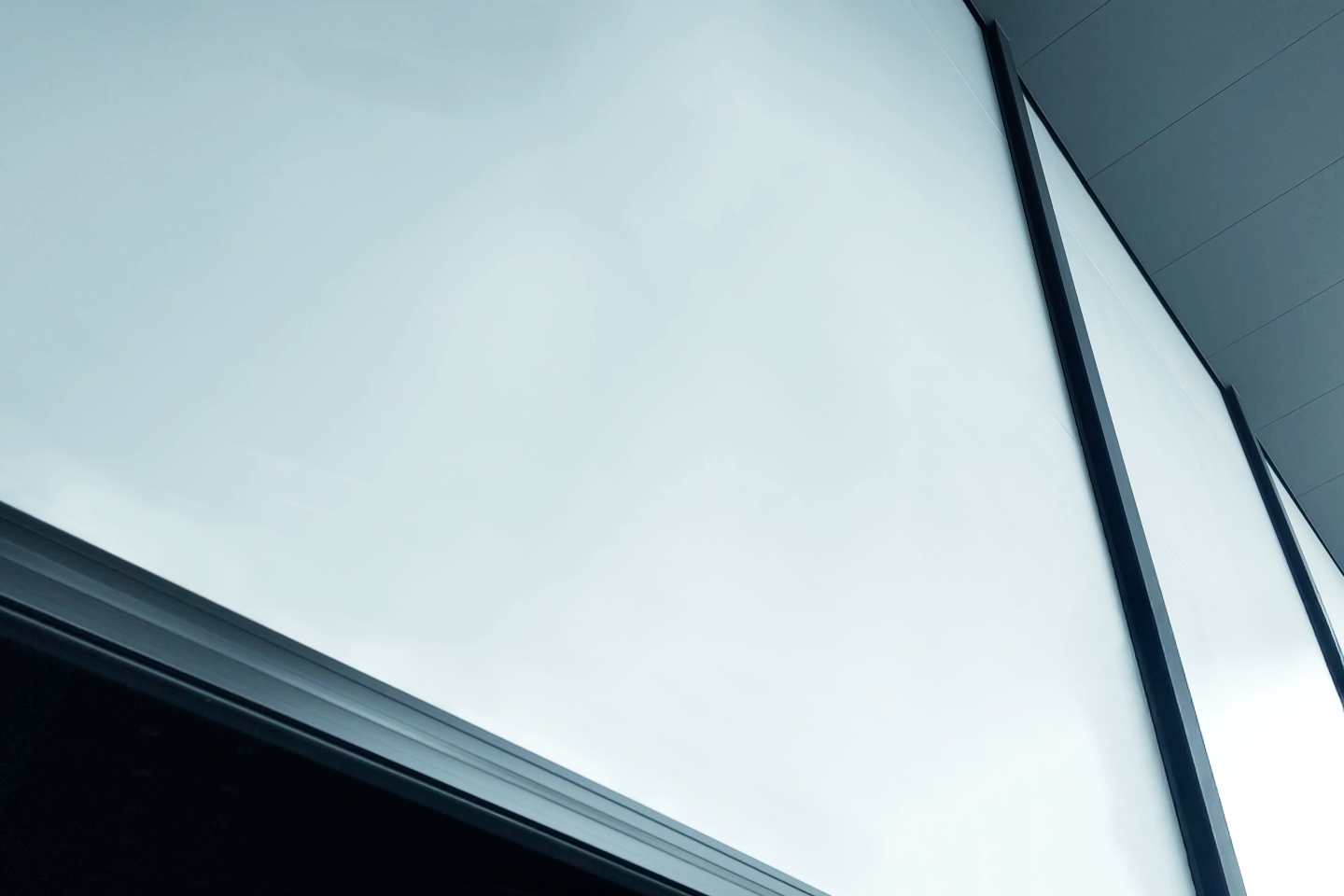

Multi-window bracket to prevent light leakage between windows
By using a “multi-window bracket” that connects multiple large windows, gaps between screens are eliminated.
This prevents light from entering even large window surfaces, allowing the entire space to be uniformly darkened. This also enhances the sense of unity in appearance and contributes to the overall aesthetics of the facility.
Product Information
| Product | Motorized Roll Screen Zipper Type |
| Size | W3.6m×H6.7m, 10 units in total |

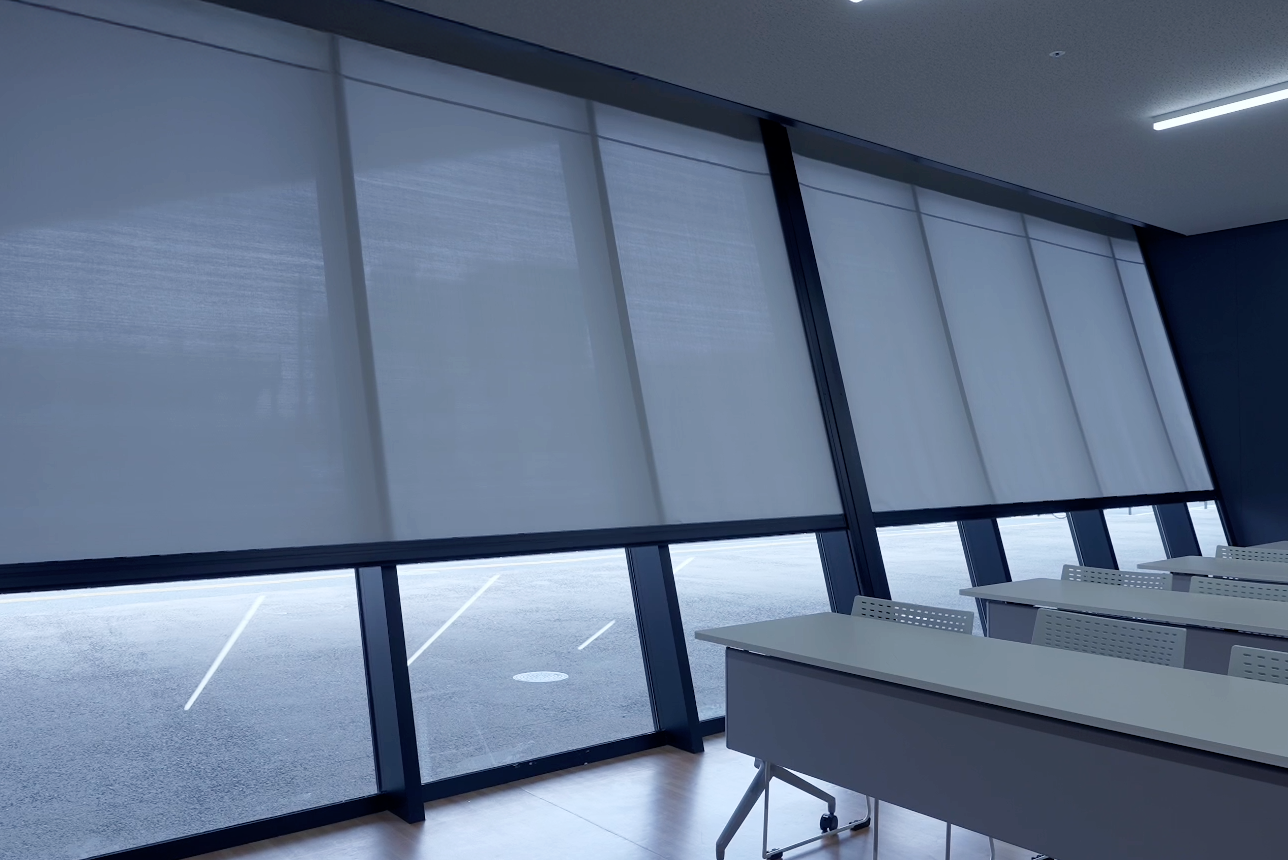

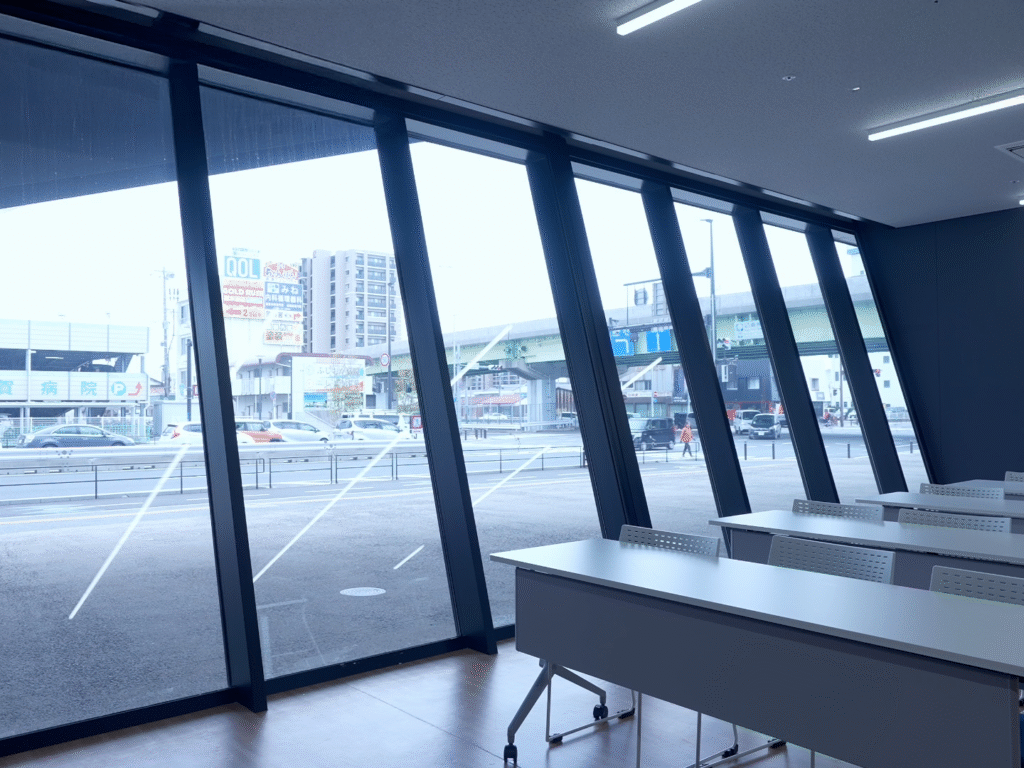

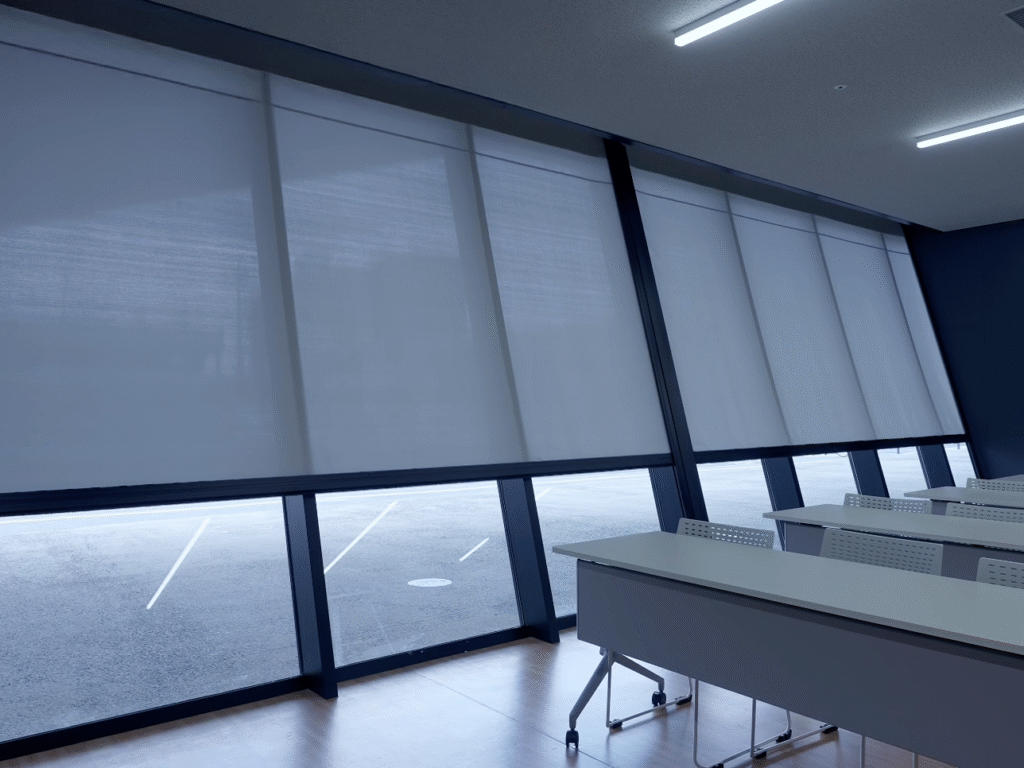

The zipper structure allows for a perfect fit even on angled windows

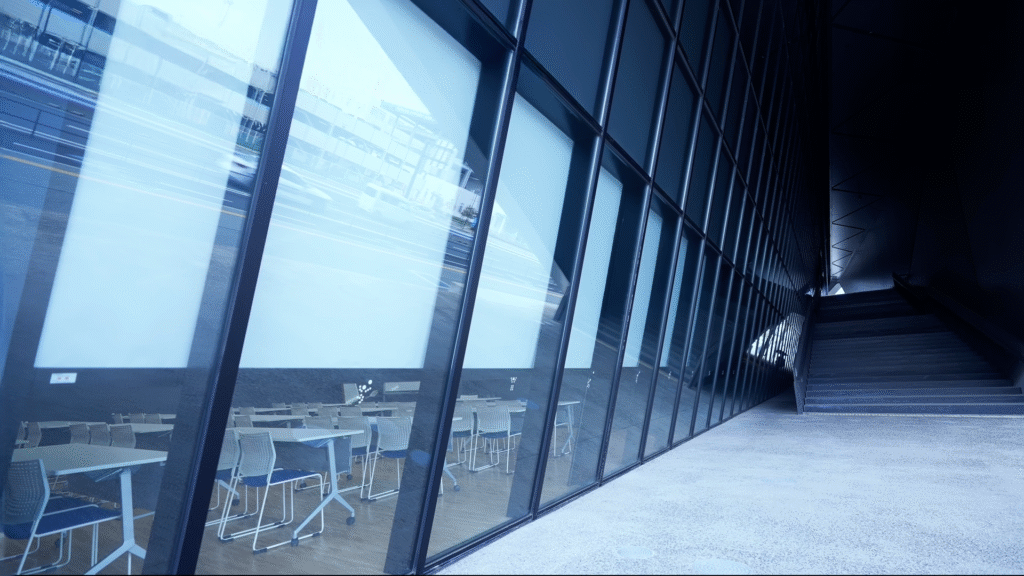

The screen is installed to match the angle of the window in the slanted conference room, fitting beautifully along the slope. It looks natural from the exterior and gives a stylish impression by following the lines of the building.
The roller blind itself is designed to be neatly stored inside the ceiling when not in use, without blocking the view or impairing the openness and aesthetics of the space.
Product Information
| Product | Motorized Roll Screen Zipper Type |
| Size | W4.6m×H3.4m, 15 units in total |
